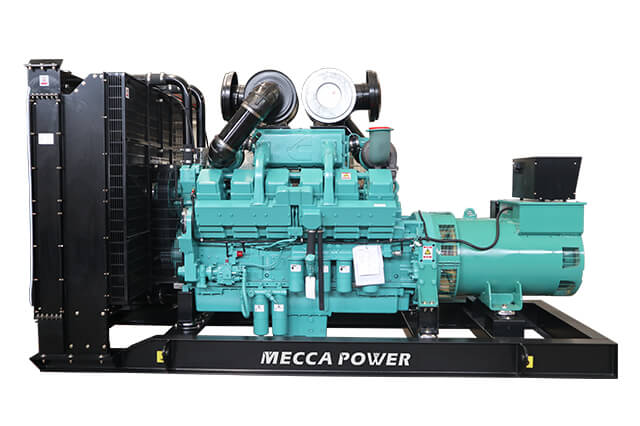

1500KVA High Voltage Cummins Diesel Genset for Oil Field

Availability:

MECCA Cummins Diesel Generator Set

Cummins engine enjoys stability, reliability,compact structure,easy to assemble and easy maintenance which meet the requirement of customer and market need.Cummins generators are specifically developed to provide continuous power for high energy demand sectors and equipment such as telecom,industry, hospitals, construction, data centers, mining, oil field,etc.


Cooling system: Integrated design greatly reduced the complexity of installation.The optimized cover ofrotation unit at front of engine can prevent accidental injury effectively. Our product had passed strictvibration, thermal cycling and corrosion test, can fit each extreme applications like tropic, frigid zone, highaltitude and high corrosion.


Air inlet system: we had optimized the installation according to the engine structure, this reduced theoutline dimension of Coolpac.Two filter to make sure that the filtration efficiency can reach 99.5%, it can avoidabnormal abrasion of the engine. Also we can provide the product which can fit extreme applications, such as high altitude, dust or humidity.

Cummins Engines Feature

The features of Cummins engines are as follows:

  1. High performance& easy maintenance;

  2. International Warranty Service;

  3. Low exhaust and long period maintenance;

  4. Variety of spare parts are easy to get from worldwide market;

  5. Stamford, Deepsea, Leroysomer alternator or other alternator;

  6. Humanized operation and maintenance meet customer need.


Cummins silent generator


Cummins generator KTA38-G9


container generator

Our Event
MECCA exhibition
Our Products Power Range

We offer diesel generators from 3kVA-4MVA, with engine CUMMINS, DEUTZ, DOOSAN, PERKINS, FAW, YTO, RICARDO, YANGDONG, ETC; low voltage switchable from 220-480V and high voltage 3.3kV-11kV.

MECCA generator power range

MECCA generator power range


Powered by CCEC CUMMINS Series                                                                                                                          50HZ   400/230 V 275-1650KVA
Model LTP PRP Engine Fuel Cons. Cylinder Displacement Gov. Dimention Weight
KVA / KW  KVA/KW  Model Origin L/H(100%) L L*W*H (MM) KGS
MC275C 275  220  250 200 NT855-GA CN 53.4 6L 14 E 2950*1100*1750 2715
MC275C 275  220  250 200 MTA11-G2A CN 55 6L 10.8 E 2800*1100*1650 2750
MC275C 275  220  250 200 MTA11-G2 CN 52 6L 10.8 E 2800*1100*1650 2780
MC303C 303  242  275 220 NTA855-G1A CN 61.3 6L 14 E 2950*1100*1750 3327
MC344C 344  275  312.5 250 MTAA11-G3 CN 61.3 6L 10.8 E 3000*1250*1750 2800
MC344C 344  275  312.5 250 NTA855-G1B CN 68 6L 14 E 3100*1100*1750 2900
MC378C 378  303  343.75 275 NTA855-G2A CN 71.9 6L 14 E 3100*1100*1750 2950
MC385C 385  308  350 280 NTA855-G4 CN 75.3 6L 14 E 3000*1100*1750 3000
MC413C 413  330  375 300 NTAA855-G7 CN 85.4 6L 14 E 3100*1250*1800 2800
MC450C 450  360  N/A N/A NTAA855-G7A CN 89.2 6L 14 E 3150*1250*1800 2985
MC413C 413  330  375 300 KTA19-G2 CN 83.5 6L 18.9 E 3100*1300*2100 3950
MC440C 440  352  400 320 QSNT-G3 CN 84.2 6L 14 ECM 3200*1250*1800 3500
MC495C 495  396  450 360 KTA19-G3 CN 97 6L 18.9 E 3250*1300*2100 3850
MC550C 550  440  500 400 KTA19-G3A CN 107 6L 18.9 E 3250*1300*2100 4250
MC550C 550  440  500 400 KTA19-G4 CN 107 6L 18.9 E 3250*1300*2100 4300
MC578C 578  462  525 420 KTAA19-G5 CN 112.9 6L 18.9 E 3500*1550*2200 4864
MC633C 633  506  575 460 KTAA19-G6 CN 131.7 6L 18.9 E 3500*1550*2200 4550
MC650C 650  520  N/A N/A KTA19-G8 CN 130 6L 18.9 E 3500*1550*2200 2010
MC688C 688  550  N/A N/A KTAA19-G6A CN 135 6L 18.9 E 3600*1550*2200 4550
MC715C 715  572  650 520 QSK19-G4 CN 145 6L 18.9 ECM 3800*1700*2200 4950
MC825C 825  660  750 600 KTA38-G2 CN 167 12V 37.8 E 4200*1700*2400 6600
MC880C 880  704  800 640 KTA38-G2B CN 167 12V 37.8 E 4200*1700*2400 6700
MC1000C 1001  801  910 728 KTA38-G2A CN 191 12V 37.8 E 4300*1700*2400 6850
MC1100C 1100  880  1000 800 KTA38-G5 CN 209 12V 37.8 E 4350*2100*2400 7150
MC1363C 1363  1090  N/A N/A KTA38-G9 CN 224 12V 37.8 E 4350*2100*2400 7210
MC1375C 1375  1100  1250 1000 QSKTA38-G5 CN 274 12V 37.8 ECM 4500*2150*2400 8600
MC1375C 1375  1100  1250 1000 KTA50-G3 CN 261 16V 50 E 4800*2100*2400 9140
MC1513C 1513  1210  1375 1100 KTA50-G8 CN 289 16V 50 E 4900*2200*2450 9600
MC1650C 1650  1320  1500 1200 KTA50-GS8 CN 309 16V 50 E 5000*2200*2500 9800


Powered by  CCEC CUMMINS                                                                                                                                      60HZ   220-480 V 275-1733KVA
Model LTP PRP Engine Fuel Cons. Cylinder Displacement Gov. Dimention Weight
KVA / KW  KVA/KW  Model Origin L/H(100%) L L*W*H (MM) KGS
MC275C 275  220  N/A  N/A  NT855-GA  CN 59.4 6L 14.0  E 2950*1100*1750 2715
MC344C 344  275  312.5 250 NTA855-G1  CN 73.4 6L 14.0  E 2950*1100*1750 3327
MC378C 378  303  343.75 275 NTA855-G1B  CN 80.5 6L 14.0  E 3100*1100*1750 2900
MC378C 378  303  343.75 275 NTA855-G2  CN 80.5 6L 14.0  E 3100*1100*1750 2950
MC433C 433  347  393.75 315 NTA855-G3  CN 87.0 6L 14.0  E 3100*1100*1750 3000
MC481C 481  385  437.5 350 KTA19-G2 CN 98.0 6L 18.9  E 3100*1300*2100 3950
MC564C 564  451  512.5 410 KTA19-G3 CN 111.0 6L 18.9  E 3250*1300*2100 3850
MC620C 619  495  562.5 450 KTA19-G3A CN 119.9 6L 18.9  E 3250*1300*2100 4250
MC620C 619  495  562.5 450 KTA19-G4 CN 120.0 6L 18.9  E 3250*1300*2100 4300
MC646C 646  517  587.5 470 KTAA19-G5 CN 134.0 6L 18.9  E 3500*1550*2200 4864
MC688C 688  550  625 500 QSK19-G4 CN 143.0 6L 18.9  ECM 3800*1700*2200 4950
MC756C 756  605  687.5 550 QSK19-G5 CN 143.0 6L 18.9  ECM 3800*1700*2200 4950
MC750C 750  600  N/A N/A KTAA19-G6A CN 140.0 6L 18.9  E 3600*1550*2200 4550
MC850C 853  682  775 620 KT38-G CN 154.0 12V 37.8  E 4050*1700*2500 6500
MC963C 963  770  875 700 KTA38-G1 CN 195.4 12V 37.8  E 4200*1700*2400 6600
MC1000C 997  798  906.25 725 KTA38-G2 CN 204.0 12V 37.8  E 4200*1700*2400 6700
MC1030C 1031  825  937.5 750 KTA38-G2B CN 204.1 12V 37.8  E 4200*1700*2400 6700
MC1100C 1100  880  1000 800 KTA38-G2A CN 225.0 12V 37.8  E 4300*1700*2400 6850
MC1240C 1238  990  1125 900 KTA38-G4 CN 245.2 12V 37.8  E 4250*2060*2500 6900
MC1320C 1320  1056  1200 960 QSK38-G5 CN 262.0 12V 37.8  ECM 4500*2150*2400 8600
MC1375C 1375  1100  N/A N/A KTA38-G9 CN 267.0 12V 37.8  E 4350*2100*2400 7210
MC1500C 1513  1210  1375 1100 KTA50-G3 CN 282.0 16V 50.0  E 4800*2100*2400 9140
MC1733C 1733  1386  1575 1260 KTA50-G9 CN 330.0 16V 50.0  E 5000*2200*2500 9800


Application

In the agricultural field, tractors, irrigation pumps and threshing machines and other equipment are predominantly diesel powered.


Construction is another sector that relies heavily on diesel power. All concrete pavers, scrapers, rollers, trenchers and excavators run on diesel.


The mining and mineral extraction sector worldwide relies heavily on diesel power to harness natural resources such as aggregates, precious metals, iron ore, oil, gas, and coal. Diesel-powered shovels and drills excavate these products and load them into enormous mining trucks or onto conveyer belts that also operate on the same fuel.


Data center is a centralized hub for storing, processing and disseminating large volumes of data and applications for an enterprise. Securing data and processes and preventing important information from being leaked or lost is critical and can only be guaranteed by a constant, high-quality power supply.


For the oil and gas industry, MECCA POWER diesel generator sets are built to provide dependable power under extreme conditions and are available in many kW ranges to fit your exact needs.

generator for agricultural

Generator for Agricultural

generator for construction

Generator for Construction

generator for Mining

Generator for Mining

generator for data center

Generator for Data center

generator for oil gas

Generator for Oil Gas
